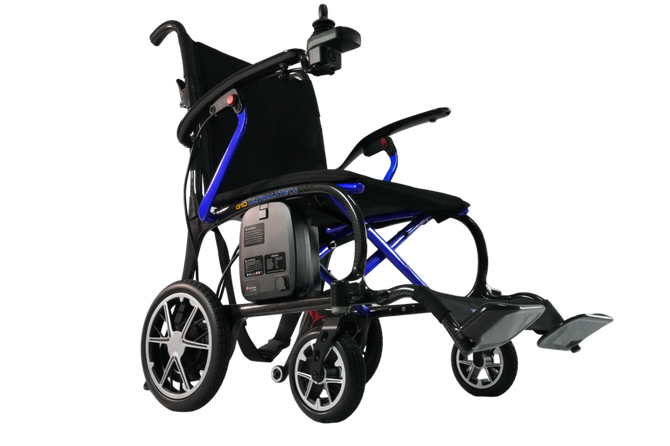

ULTRALITE G10
$2,999.00
- The Lightest Powerchair on the Planet
- 300lbs Capacity – Highest in Class
- Forcemax™ Lithium Battery
- Easy Folding and Unfolding for Travel
- FAA Air Travel and Cruise Ready
Redefines what is possible in power mobility lightness. Weighing just 25.8Ibs (without battery). It proudly holds the title of the lightest power wheelchair on the market today.
| Overall dimensions (LWH) | 36" x 24" x 35" | Folded dimensions (LWH) | 29" x 12" x 28" |
| Total weight (Without Battery) | 25.8lbs | Battery weight | 2lbs |
| Pivot width | 44" | Mass Tolerance | ± 4.4lbs |
| Reversing width | 59" | Turning radius | 28" |
| Ground clearance | 1.25" | Required width of angled corridor | 39" |
| Required doorway entry depth | 62" | Required corridor width for side opening | 35" |
| Static stability | 9° | Driving distance | 10miles |
| Dynamic stability uphill | 6° | Climbing ability | 3° |
| Maximum Climbing Degree | 10° | Max over the obstacle height | 1" |
| Maximum speed forward | 4mph | Minimum braking distance from max speed | ≤ 39" |
| Seat plane angle | 4° | Effective seat depth | 16.5" |
| Seat width | 18" | Effective seat width | 20" |
| Seat surface height at front edge | 17.3" | Backrest angle | 8° |
| Backrest height | 17.5" | Back support height / Backrest height | 16.4" |
| Distance from Footrest to Seat | 15.3" | Distance from Footrest to Surface | 3" |
| Footrest length | 4.5" | Footrest to leg angle | 97° |
| Leg to seat surface angle | 114° | Armrest height | 9.5" |
| Front location of armrest structure | 14" | Armrest Length | 15" |
| Armrest Width | 2" | Armrest Angle | 2.5° |
| Audible noise | ≤ 65dB (A-weighted) | The forces necessary to operate the control devices | Push-button 2N, Rockers 5N |
| Motor Model | 24V 200W | Lithium Battery Specification | 24V / 10Ah |
| Maximum Output Current of Controller | 35A | Maximum Output Current of Charger | 2A |
| Diameter of movable wheels / Castor wheel diameter | 6.5" | Diameter of fixed wheels / Propelling wheel diameter | 11" |
| Linear Tolerance | ± 2° | Angular Tolerance | ± 2° |
